Freightliner A06-88572-009 Headlamp Assembly with Chrome Bezel, RH
Genuine Freightliner Headlamp Chrome Bezel, RH - A06-88572-009Â
Mounting Location:Â RH
Length:Â 16.09 in
Width:Â 10.71 in
Finish:Â Chrome Plated
Housing Material:Â Polycarbonate
Parts Cross Reference
| Freightliner | A06-88572-009, A0688572009, A06-88572-005, A06-88572-001, A06-66777-003, A06-66777-001 |
| Manufacturer: | Freightliner |
| Weight: | 6.850000 |
| Dimensions: | 13.300X18.900X8.900 IN |
| VMRS: | 034-001-134 |
Genuine Freightliner Truck Parts Warranty
With limited warranty protection on aftermarket truck parts sold through authorized Freightliner dealers, DTNA covers defective materials and/or workmanship for one year. For details on coverage, contact your local dealer.

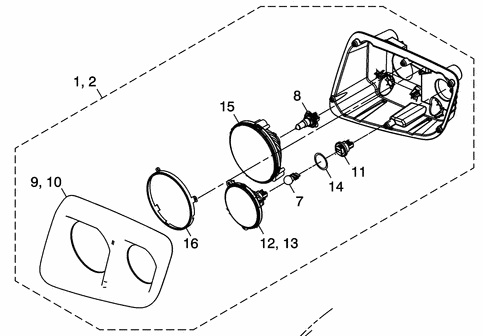

| Ref # | Description | Part Number |
| 2 | HEADLAMP - CHROME BEZEL, RIGHT HAND | A06-88572-009 |
| 7 | BULBS - ALL LAMPS - KRYPTON, AMBER, LONG LIFE | SYL 3157KNA |
| 8 | HEADLAMP BULB,HI/LO | PLC 9003C1 |
| 10 | BEZEL HEADLAMP - CHROME RIGHT HAND | GNR 206833H |
| 11 | SOCKET TRN SIGNL | GNR 205907CAN21 |
| 13 |
TURN SIGNAL LAMP W/O BULB
|
GNR 186037 |
| 14 | SEAL-SOCKET, TURN SIGNAL,24U | GNR P5543 |
| 15 | LENS - HEADLAMP, REFLECTOR, 7 INCH, GLASS | GNR 209497RMY |
| 16 | RETAINER RING,HEADLAMP | GNR 20 6571H4 |
