Freightliner A06-88572-008 Headlamp Assembly with Chrome Bezel, LH
Genuine Freightliner Headlamp Assembly with Chrome Bezel, LH - A06-88572-008Â
Mounting Location: LH
Mounting Stud Quantity: 4
Length: 16.09 in
Width: 10.71 in
Mounting Stud Thread Size: M8X1.25 mm
Finish: Chrome Plated
Housing Material: Polycarbonate
Bulb Type: HB2
Lens Material: Polycarbonate
Reflector Material: Polybutylene Terephthalate
High Beam Bulb Type: FMVSS 108
Parts Cross Reference
| Freightliner | A06-88572-008, A0688572008, A06-88572-004, A06-88572-000, A06-66777-002, A06-66777-000 |
| Manufacturer: | Freightliner |
| Weight: | 8.000000 |
| Dimensions: | 034-001-134 |
| VMRS: | 034-001-134 |
Genuine Freightliner Truck Parts Warranty
With limited warranty protection on aftermarket truck parts sold through authorized Freightliner dealers, DTNA covers defective materials and/or workmanship for one year. For details on coverage, contact your local dealer.

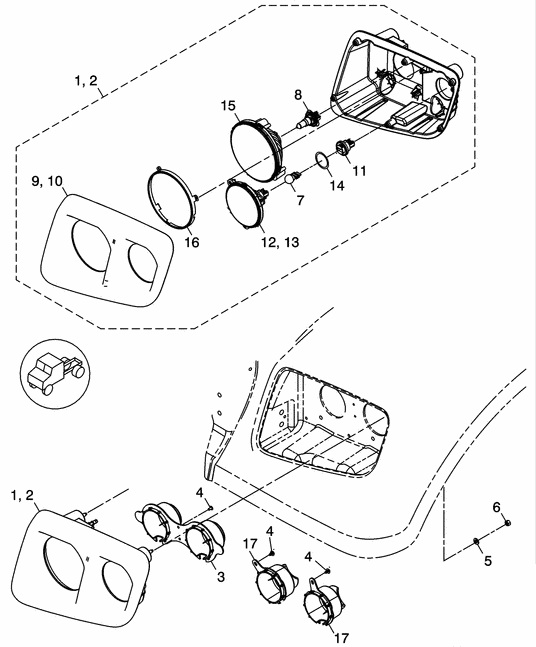

| Ref # | Description | Part Number |
| 2 | HEADLAMP - CHROME BEZEL, RIGHT HAND SIDE | A06-88572-009 |

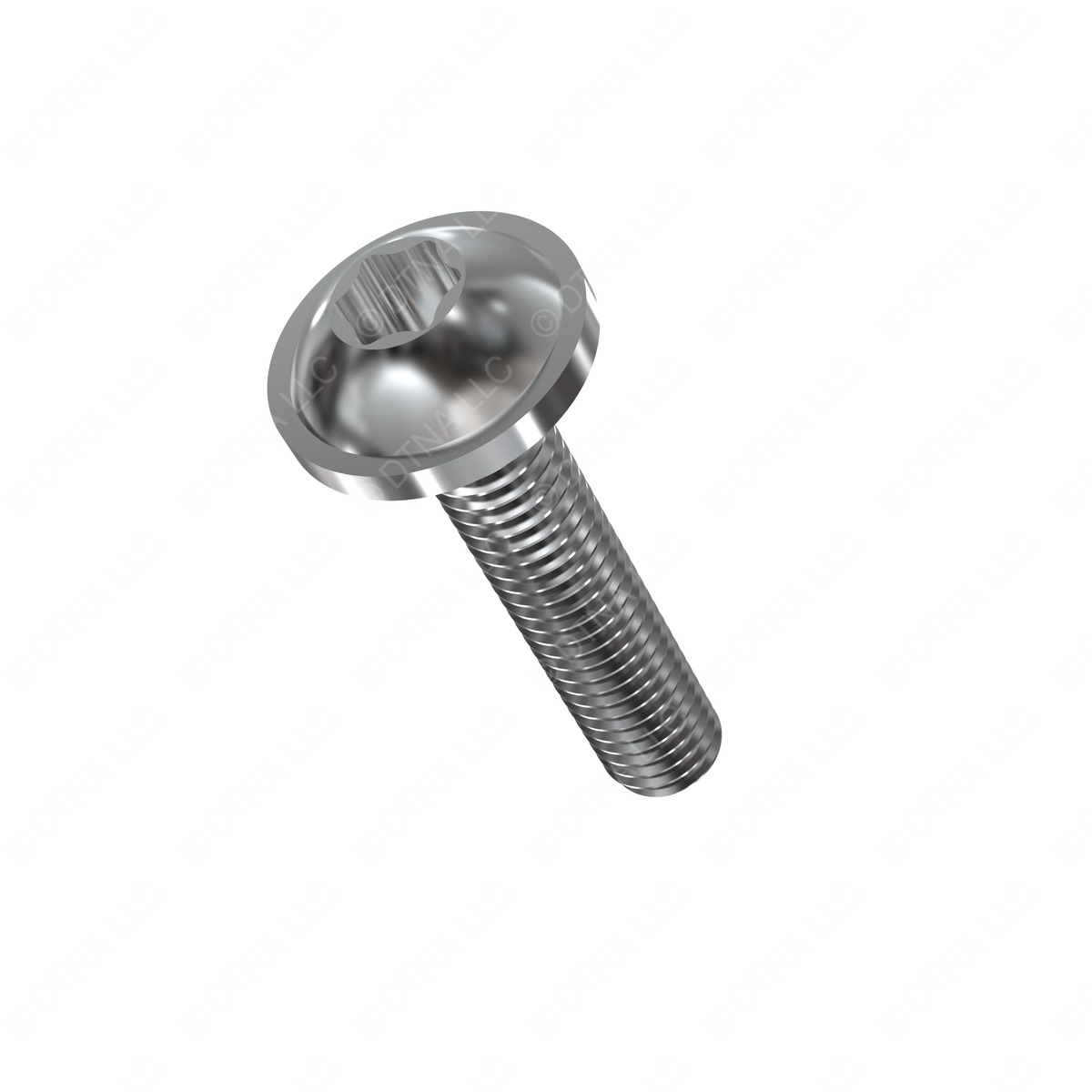

| 4 | SCREW - MACHINE, RHWC, HDI, DGPT, M6 X 12 | 23-13488-012 |
| 7 | BULBS - ALL LAMPS - KRYPTON, AMBER, LONG LIFE | SYL 3157KNA |
| 8 | HEADLAMP BULB,HI/LO | PLC 9003C1 |
| 9 | BEZEL HEADLAMP - CHROME LEFT HAND | GNR 206834H |
| 11 | SOCKET TRN SIGNL | GNR 205907CAN21 |
| 12 | TURN SIGNAL LAMP W/O BULB | GNR 186037 |
| 14 | SEAL-SOCKET, TURN SIGNAL,24U | GNR P5543 |
| 15 | LENS - HEADLAMP, REFLECTOR, 7 INCH, GLASS | GNR 209497RMY |
| 16 | RETAINER RING,HEADLAMP | GNR 20 6571H4 |
| 17 | COVER - BULB, HEADLAMP | 06-84258-001 |
