Freightliner A06-51907-007 Headlamp Assy - RH
Genuine Freightliner A06-51907-007 Headlamp Assy-Cascadia, RH
Â
SERVICE NOTE: This headlamp assembly version requires a 6mm nut instead of earlier versions with 8mm. Qty 4  A23-12767-006 Nut/washer assembly -6mmP/N: HAL 224 394 045  HOLDER, METALLIZED BULB / SOCKET-TURN SIGNAL is used in this assembly. Â
Mounting Location:Â RH
Length:Â 406.60 mm
Width:Â 353.40 mm
Depth:Â 403.50 mm
Housing Material:Â Polypropylene
Bezel Material:Â Polyamide
Bulb Type:Â Halogen
Lens Material:Â Polycarbonate
Low Beam Bulb Type:Â H11
High Beam Bulb Type:Â H11
Parts Cross Reference
| Alliance | ABP N60B 71030R |
| Automann | 564.46058 |
| Dorman | 888-5205 |
| Freightliner | A06-51907-007, A06-51907-005, A06-51907-003, A06-51907-001 |
| Pai Industries | 740315, 740315E |
| S&S Newstar | S-21989 |

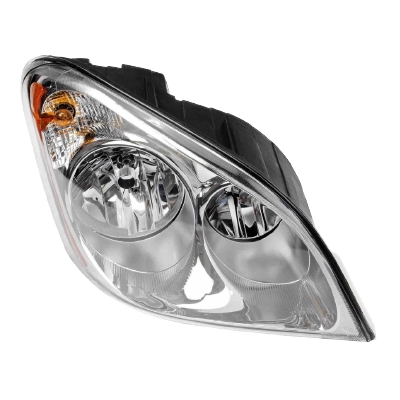

| Wheeler Fit | 5101-0012 |
| Manufacturer: | Freightliner |
| Weight: | 12.900000 |
| Dimensions: | 28.000X18.000X14.000 IN |
| VMRS: | 034-001-134 |
Genuine Freightliner Truck Parts Warranty
With limited warranty protection on aftermarket truck parts sold through authorized Freightliner dealers, DTNA covers defective materials and/or workmanship for one year. For details on coverage, contact your local dealer.

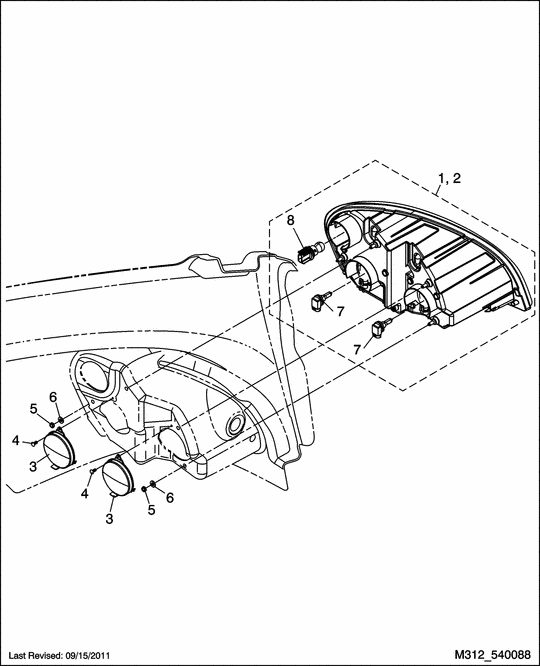

| Ref # | Description | Part Number |
| 1 | HEADLAMP - SAE, P3, LEFT HAND | A06-51907-006 |
| 2 | HEADLAMP - SAE, P3, RIGHT HAND | A06-51907-007 |

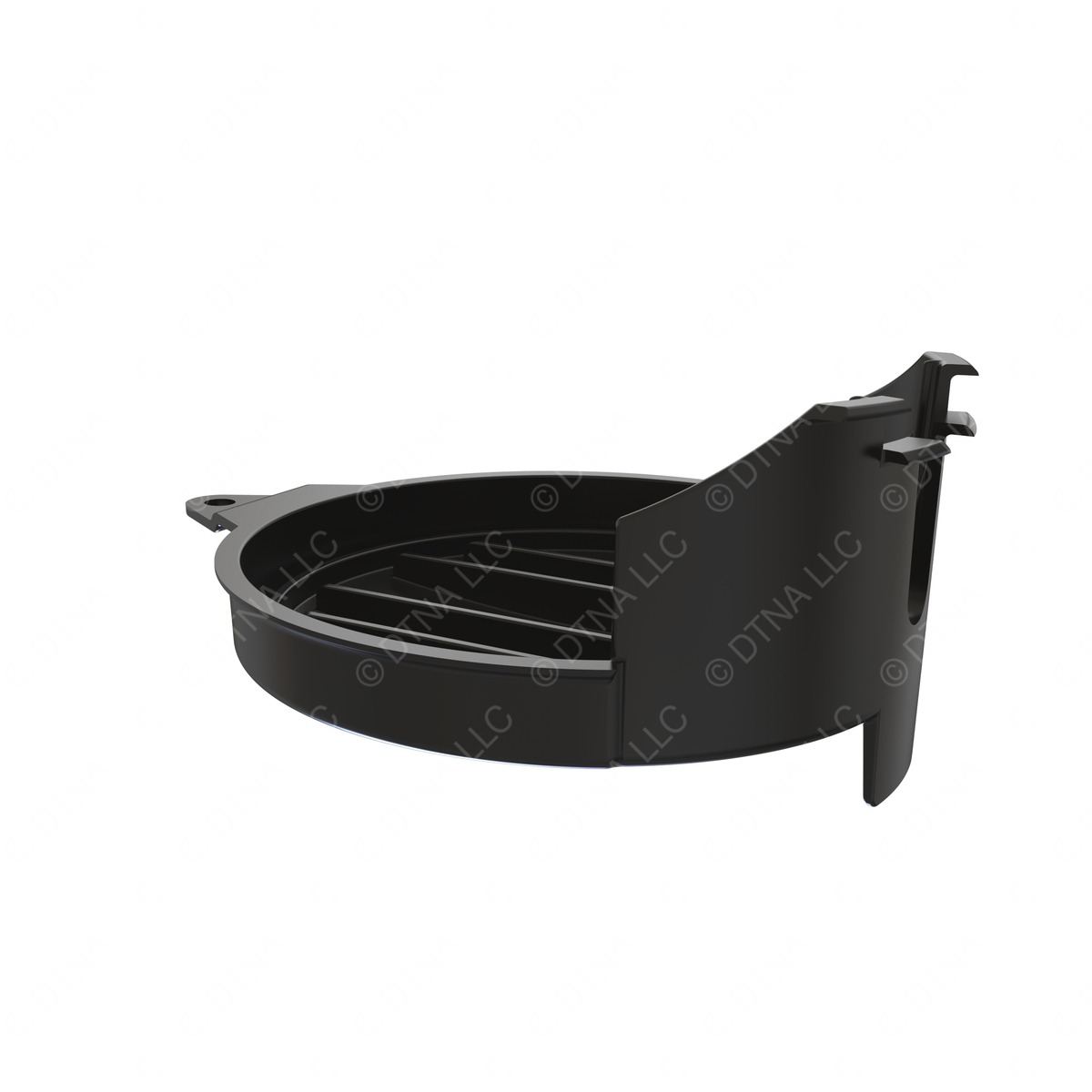

| 3 | BULB COVER - H11, HEADLAMP, P3 | 06-53972-000 |

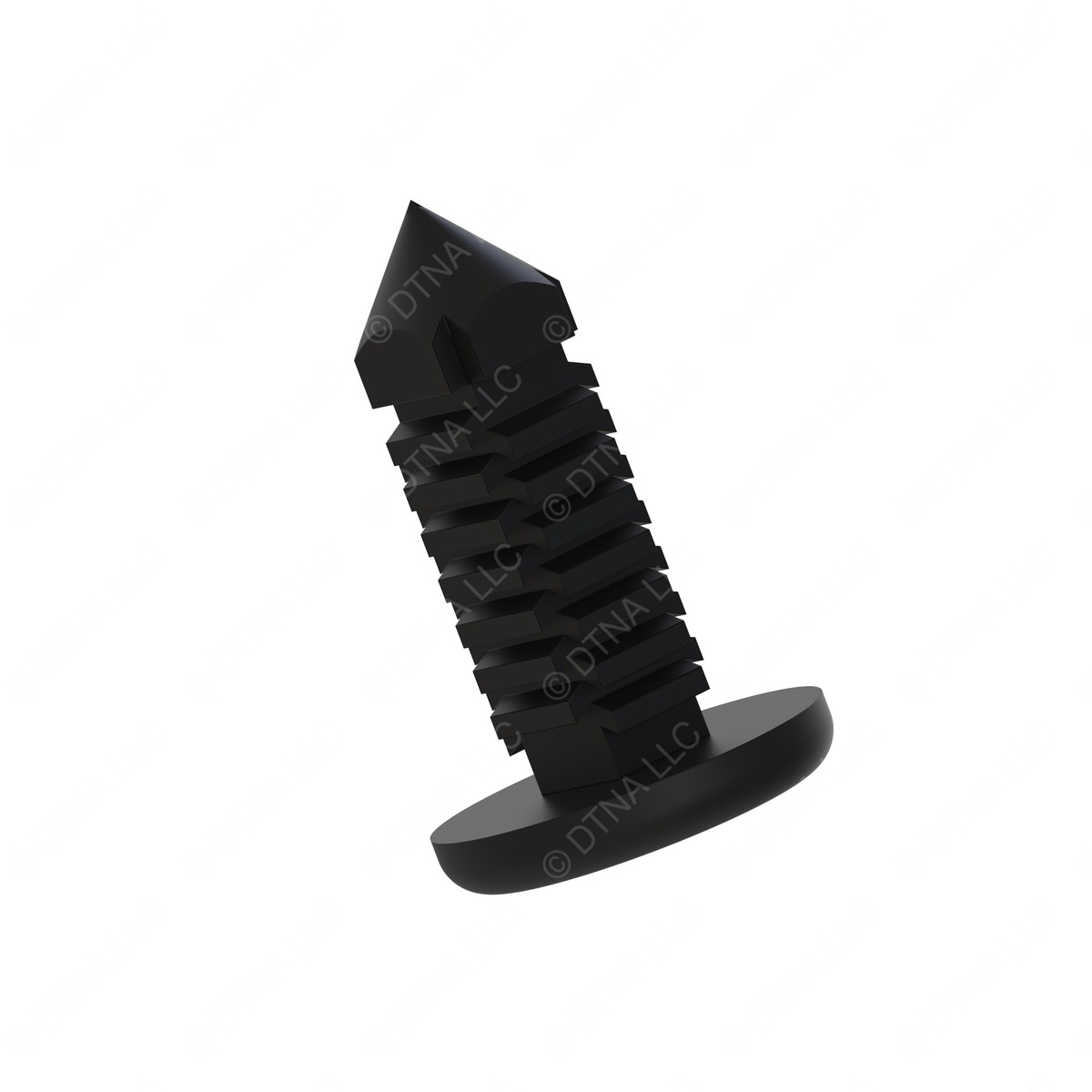

| 4 | CLIP - CHRISTMAS TREE, NYLON, 0.187 | 23-12114-000 |

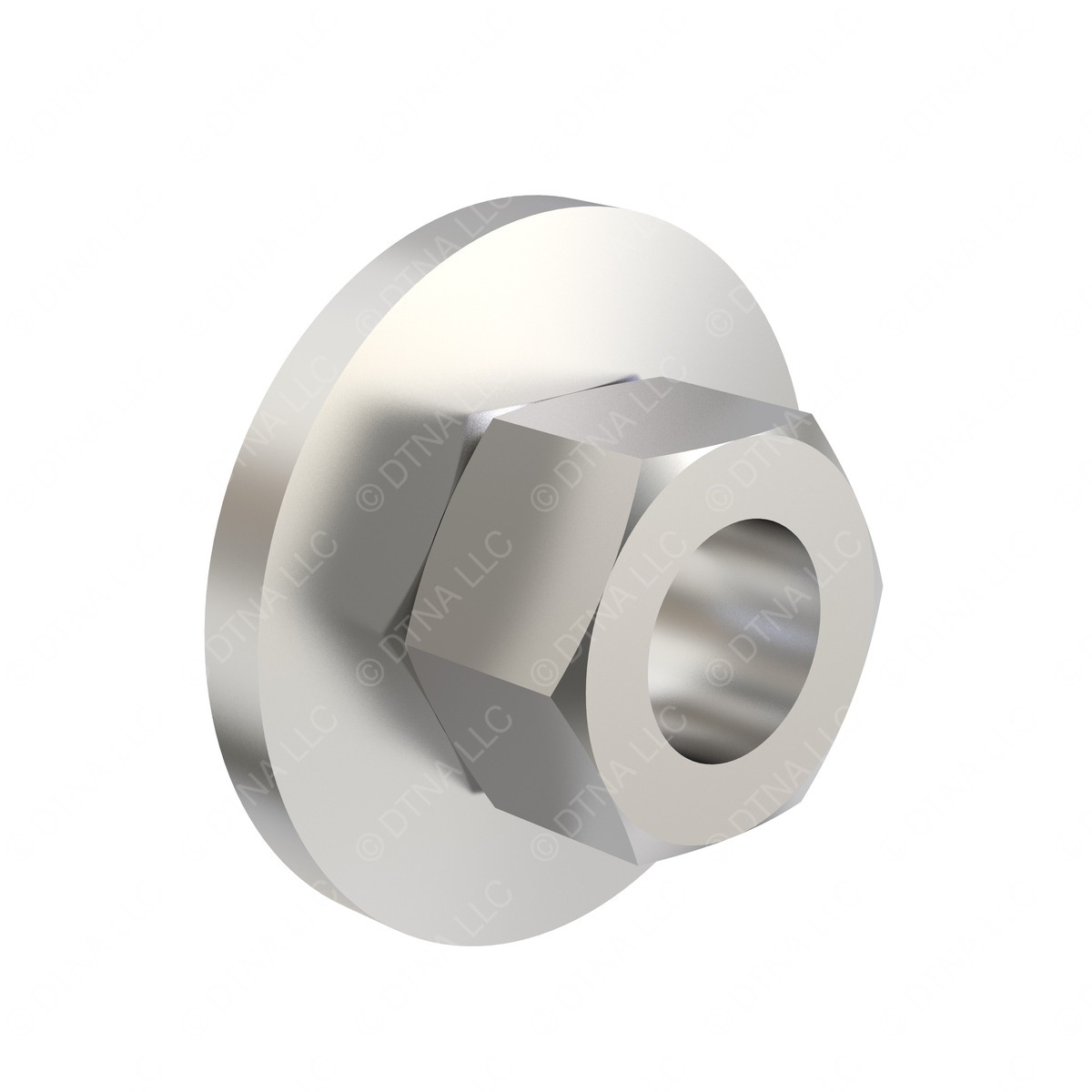

| 5 | NUT - HEXAGONAL, M6, WITH CONICAL WASHER | 23-13865-006 |

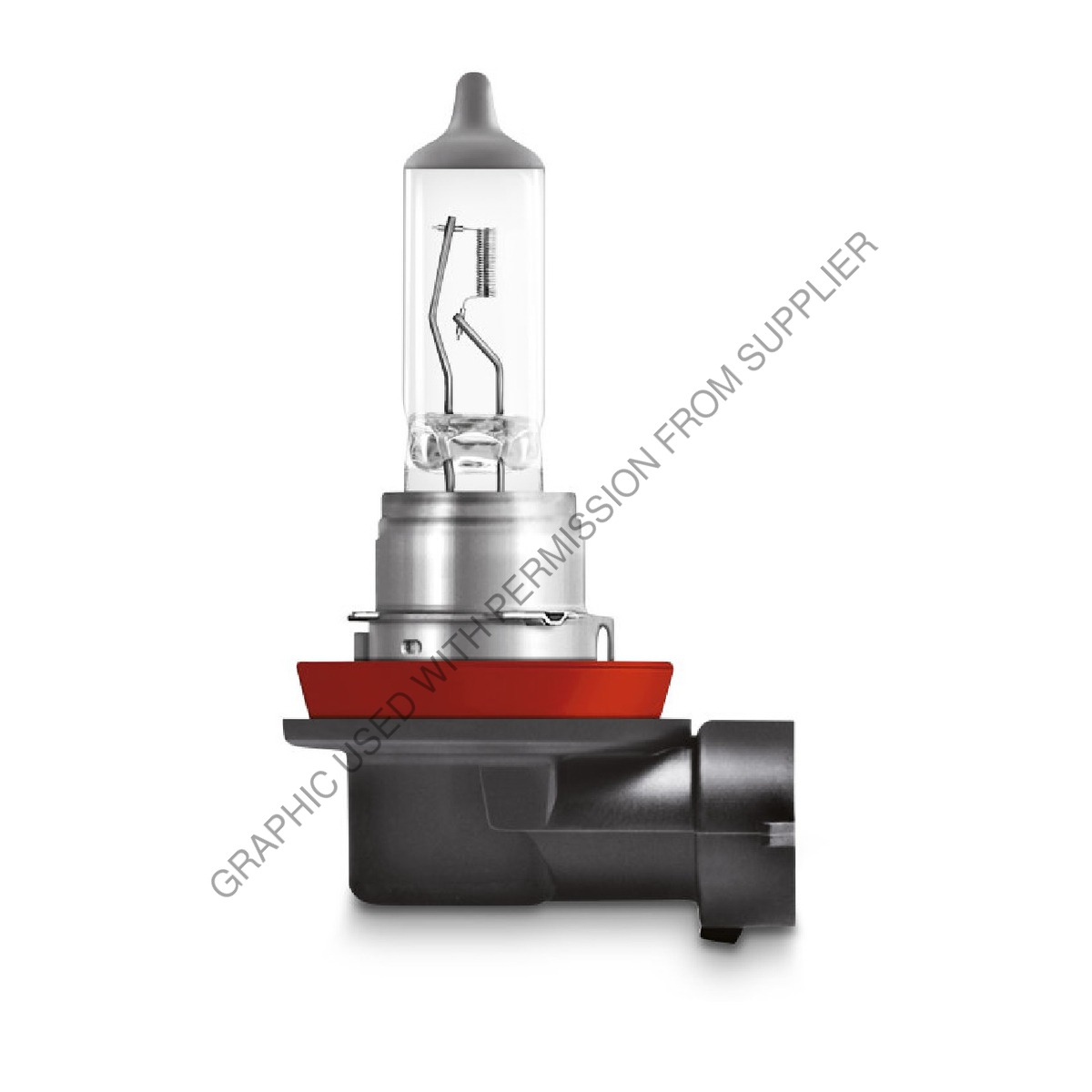

| 7 | HALOGEN CAPSULE - HIGH BEAM, HEADLAMP, BULB, H11, LONG LIFE | SYL H11LL12V55W |

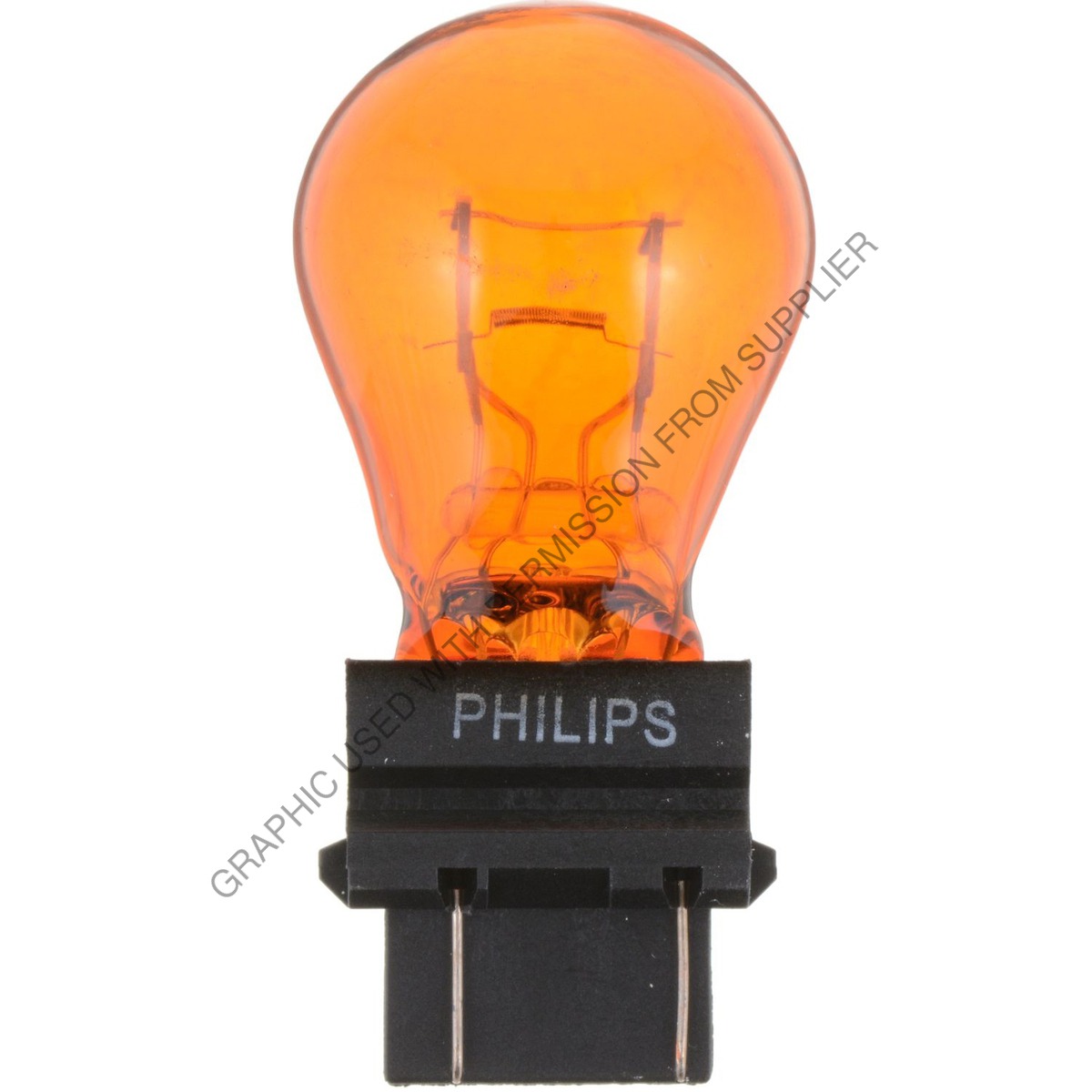

| 8 | BULB | PLC 4157NALLB2 |
Cross Reference
