Freightliner A06-51907-006 Headlamp, LH
Genuine Freightliner A06-51907-006 Headlamp Assy-Cascadia, LH
Â
SERVICE NOTE: This headlamp assembly version requires a 6mm nut instead of earlier versions with 8mm. Qty 4 Â A23-12767-006 Nut/washer assembly -6mmP/N: HAL 224 394 045 Â HOLDER, METALLIZED BULB / SOCKET TURN SIGNAL is used in this assembly.
Mounting Location: LH
Â
Length: 406.60 mm
Width: 353.40 mm
Depth: 403.50 mm
Â
Housing Material: Polypropylene
Bezel Material: Polyamide
Bulb Type: Halogen
Lens Material: Polycarbonate
Low Beam Bulb Type: H11
High Beam Bulb Type: H11
Parts Cross Reference
| Alliance | ABP N60B 71030L |
| Automann | 564.46057 |
| Dorman | 888-5206 |
| Freightliner | A06-51907-006, A06-51907-004, A06-51907-002, A06-51907-000 |
| Pai Industries | 740314, 740314E |
| S&S Newstar | S-21988 |
| Wheeler Fit | 5101-0013 |
| Manufacturer: | Freightliner |
| Weight: | 12.700000 |
| Dimensions: | 31.000X21.000X18.000 IN |
| VMRS: | 034-001-134 |
Genuine Freightliner Truck Parts Warranty
With limited warranty protection on aftermarket truck parts sold through authorized Freightliner dealers, DTNA covers defective materials and/or workmanship for one year. For details on coverage, contact your local dealer.

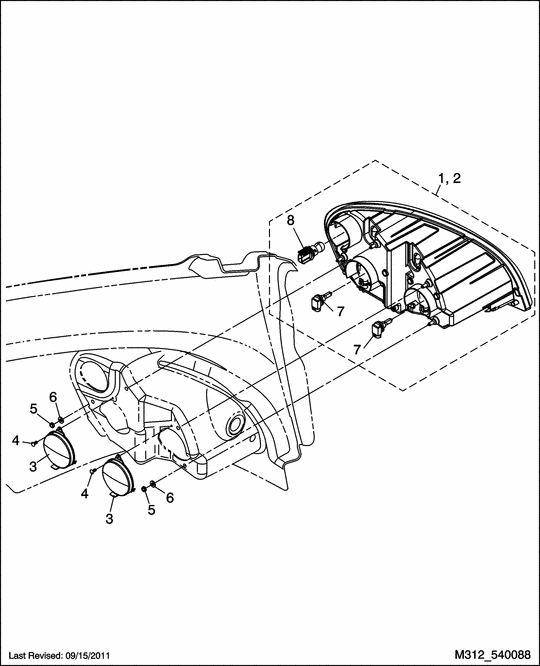

| Ref # | Description | Part Number |
| 1 | HEADLAMP - SAE, P3, LEFT HAND | A06-51907-006 |
| 2 | HEADLAMP - SAE, P3, RIGHT HAND | A06-51907-007 |
| 3 | BULB COVER - H11, HEADLAMP, P3 | 06-53972-000 |
| 4 | CLIP - CHRISTMAS TREE, NYLON, 0.187 | 23-12114-000 |
| 5 | NUT - HEXAGONAL, M6, WITH CONICAL WASHER | 23-13865-006 |
| 7 | HALOGEN CAPSULE - HIGH BEAM, HEADLAMP, BULB, H11, LONG LIFE | SYL H11LL12V55W |
| 8 | BULB | PLC 4157NALLB2 |
