Freightliner A22-74244-002 Mirror Assembly, Black, Heated, RH
Freightliner A22-74244-002 Mirror Assembly, Black, Heated, RH
Mounting Length: 790.90 mm
Mounting Position: RH
Heated: Yes
Color: Black
Mirror Type: Convex
Parts Cross Reference
| Automann | 563.46005 |
| Freightliner | A22-74244-002, A2274244002, A22-73309-005, A22-59615-005, A22-58514-005, A22-52242-005 |
| Manufacturer: | Freightliner |
| Weight: | 14.000000 |
| Dimensions: | 23.000X7.000X37.000 IN |
| VMRS: | 002-010-006 |
Genuine Freightliner Truck Parts Warranty
With limited warranty protection on aftermarket truck parts sold through authorized Freightliner dealers, DTNA covers defective materials and/or workmanship for one year. For details on coverage, contact your local dealer.

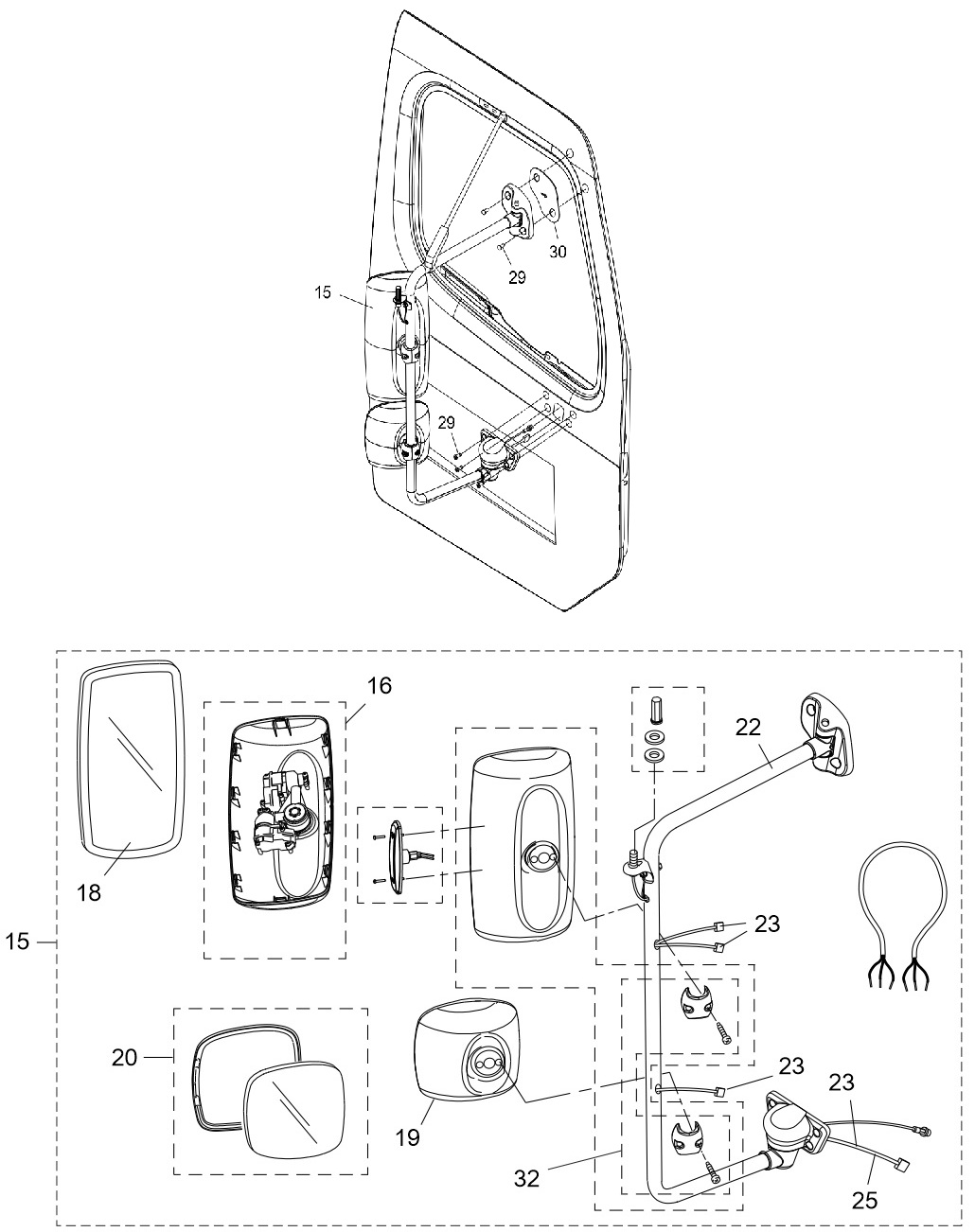

| Ref # | Description | Part Number |
| 16 | COVER - BACK, MIRROR, MAIN, BLACK | MEK 514145330 |
| 18 | CARRIER ASSEMBLY - MIRROR, MAIN HEATED | MEK 154143307 |
| 19 | COVER - BACK, MIRROR, CONVEX, BLACK | MEK 564155330 |
| 20 | MIRROR - CONVEX, HEATED | MEK 154153327 |
| 22 | SUPT ASSY-MIRROR,CVX,HTD,RH | MEK 584147430 |
| 23 | CABLE | MEK 094140002 |
| 29 | SCREW - CAP, BUTTON HEAD, HDI, M8 X 20 MM, STAINLESS STEEL | MEK 614050003M2 |
| 30 | GASKET - MIRROR HOLDER, UPPER | 22-57848-002 |
| 32 | CLAMP KIT - SUPPORT, MIRROR, M2 | MEK 614050003M2 |
