Freightliner A18-46801-000 Inner Door Panel, Slate Gray, LH
Genuine Freightliner A18-46801-000 Inner Door Panel, Slate Gray, LH
Length: 35.03 in
Width: 35.29 in
Thickness: 0.22 in
Â
Color: Slate Gray
Material: ABS/PC
Finish: Painted
Parts Cross Reference
| Freightliner | A18-46801-000, A1846801000, 18-46799-000, 18-35768-001, 18-35768-000, 18-33890-000, 18-29831-000 |
| Manufacturer: | Freightliner |
| Weight: | 19.500000 |
| Dimensions: | 37.000X37.000X6.000 IN |
| VMRS: | 002-017-003 |
Genuine Freightliner Truck Parts Warranty
With limited warranty protection on aftermarket truck parts sold through authorized Freightliner dealers, DTNA covers defective materials and/or workmanship for one year. For details on coverage, contact your local dealer.

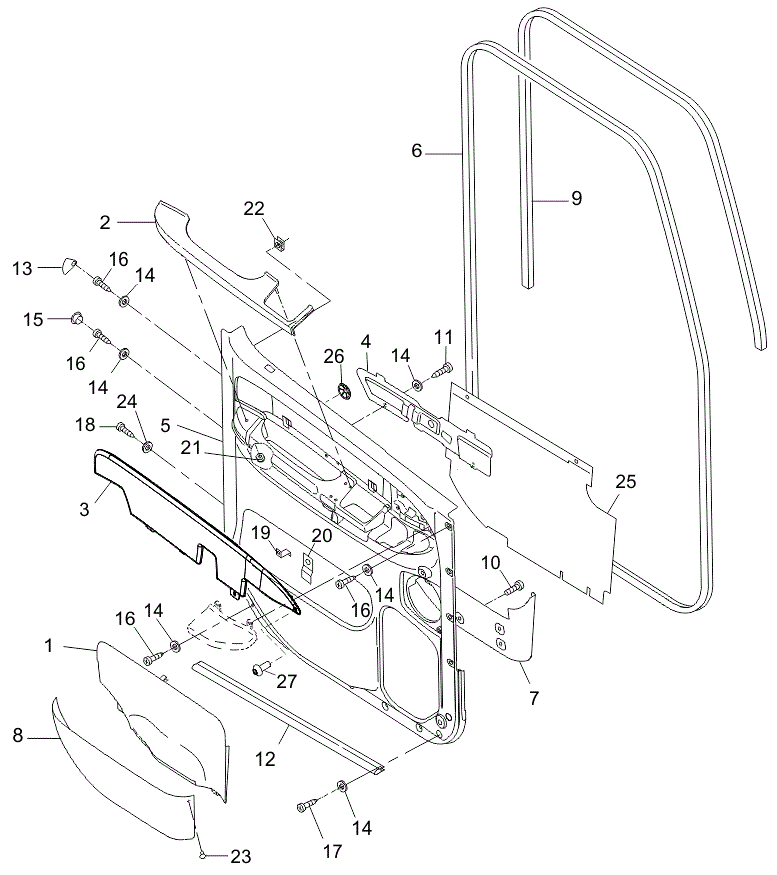

| Ref # | Description | Part Number |
| 1 | PANEL - TRIM, LOWER, LEFT HAND, SHADOW GREY | 18-47685-000 |
| 2 | ARMREST - LEFT HAND, CAB DOOR | A18-33211-000 |
| 3 | UPHOLSTERY-DOOR UPPER,LH | 18-54875-000 |
| 6 | SEAL ASSEMBLY - PRIMARY, LEFT HAND AND RIGHT HAND DOOR, CC | A18-44466-000 |
| 8 | ASSY-CARPET,LH,GRAPHITE BLACK | A18-35329-390 |
| 9 | SEAL - DOOR, AUXILIARY | 18-35114-001 |
| 10 | SCREW - TF, PAN HEAD, HDI, #10 | 23-11829-050 |
| 11 | SCREW - MACHINE, PAN HEAD, STAINLESS STEEL, 10-24 X 0.5 | 23-11685-704 |
| 15 | PLUG - HOLE, DOME, NYLON, 0.750 HOLE | 23-12159-122 |
| 16 | SCREW - SEMS, PAN HEAD, HDI, DOG POINT, BLACK, 10 | 23-12981-707 |
| 17 | SCREW - SEMS, PAN HEAD, HDI, DOG POINT, BLACK, 10 | 23-12981-707 |
| 18 | SCREW - PAN HEAD INTERNAL THREAD, 10-16 X 2-1/4, DG PT, S | 23-12361-722 |
| 19 | BRACKET - ZEE, INTERNAL DOOR PANEL ASSEMBLY, AID | 18-32508-000 |
| 20 | BRACKET - LOWER DOOR PANEL SUPPORT | 18-38409-000 |
| 21 | NUT - HEXAGONAL, CLRLK, 10-24 | 23-09336-005 |
| 23 | NUT - SPRING, U, 10-16, 0.024-0.15 PANEL | 23-11865-000 |
| 24 | WASHER - FLAT, STAINLESS STEEL, #10, 0.735 OD | 23-10900-014 |
| 25 | BARRIER - VAPOR, DOOR, LEFT HAND | 18-45608-000 |
