Freightliner A05-32836-000 Surge Tank
Shape: Irregular
Mounting Hole Quantity: 6
Sight Glass: No
Sensor Port: No
Length: 886.21 mm
Width: 343.92 mm
Height: 303.53 mm
Wall Thickness: 3.75 mm
Outlet Outer Diameter: 31.75 mm
Outlet Inner Diameter: 24.64 mm
Inlet Inner Diameter: 6.86 mm
Inlet Outer Diameter: 13.97 mm
Material: Plastic
Baffles Included: No
Parts Cross Reference
| Alliance | ABP N20 A0532836000 |
| Automann | 575.10115 |
| Dorman | 603-1316 |
| Freightliner | A05-32836-000, A0532836000 |
| Pai | 740034 |
| S&S Newstar | S-29606 |

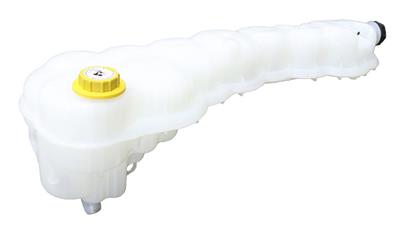

| Wheeler Fit | 1108-0025 |
| Manufacturer: | Freightliner |
| Weight: | 17.000000 |
| Dimensions: | 44.250X18.750X17.250 IN |
| VMRS: | 042-002-009 |
Genuine Freightliner Truck Parts Warranty
With limited warranty protection on aftermarket truck parts sold through authorized Freightliner dealers, DTNA covers defective materials and/or workmanship for one year. For details on coverage, contact your local dealer.

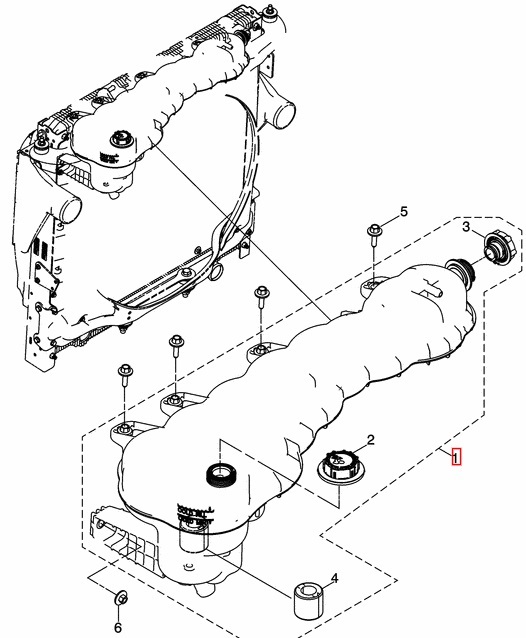

| Ref # | Description | Part Number |
| 2 | CAP - SURGE TANK, FILL | 05-32313-000 |
| 3 | CAP - SURGE TANK, 20 PSI | 05-32312-000 |

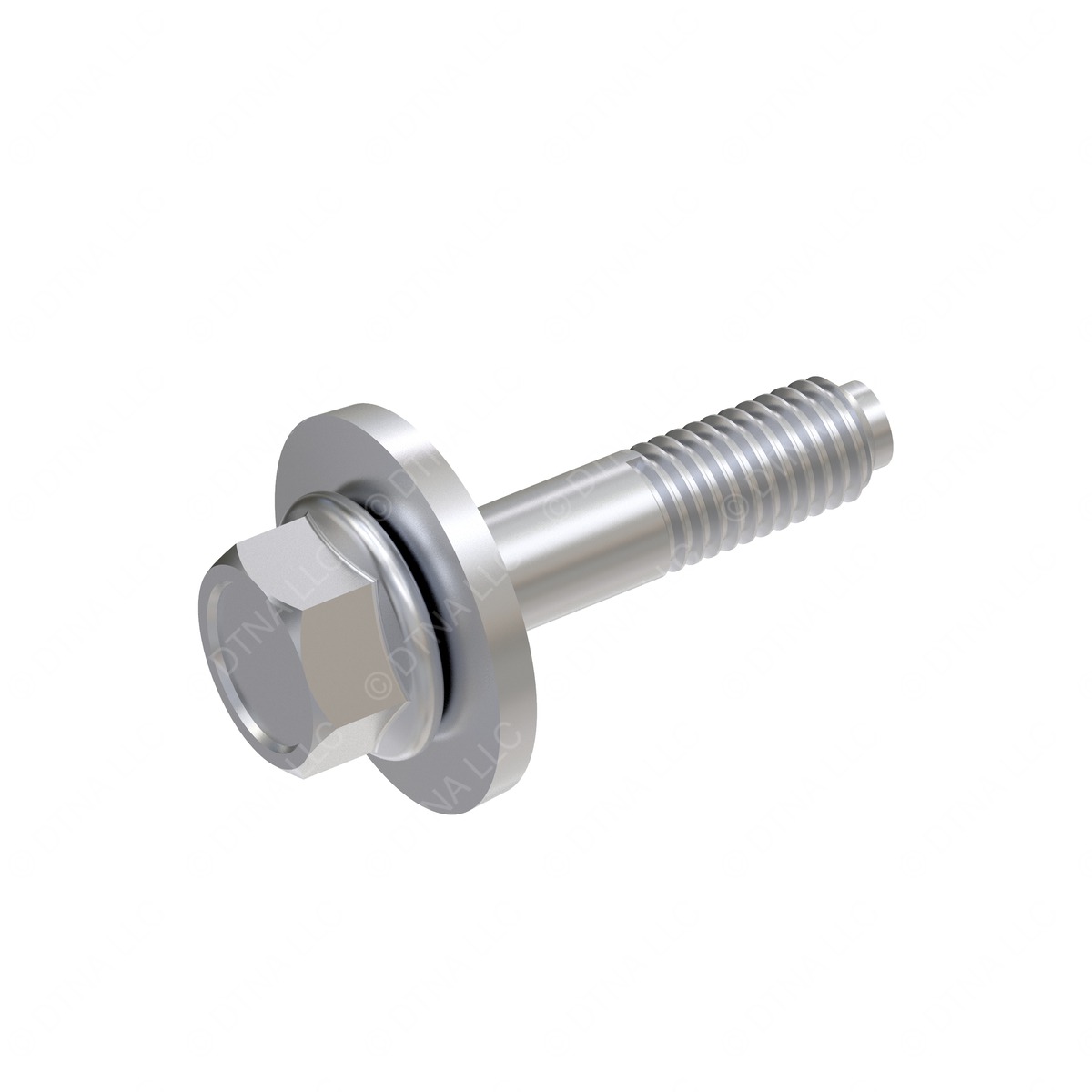

| 5 | SCREW - HEXAGONAL FLANGE, SEM | 23-13756-035 |
| 6 | NUT AND WASHER - M8 X 1.25, HEX | 23-13228-108 |
