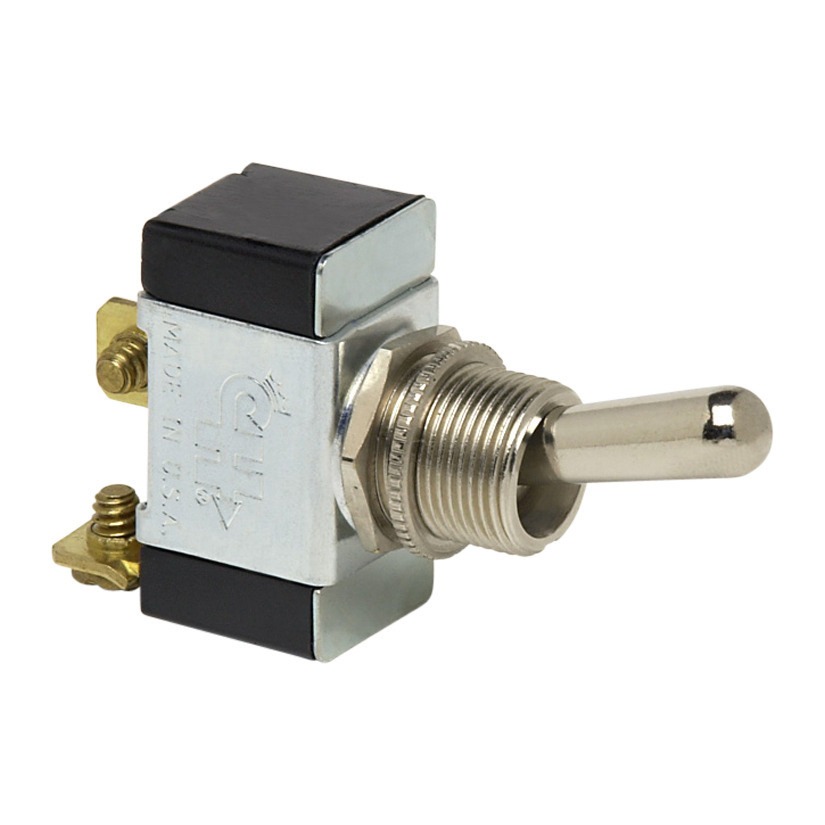

Cole Hersee 5520 Toggle Switch
Cole Hersee 5520 Toggle Switch
SWITCH, TOGGLE, HEAVY DUTY, 25A, SPST, ON-OFF
SW TGL SPST | Series: Standard Heavy Duty Series
Littelfuse Toggle Switches are designed for universal applications within harsh environments. Their mounting, body, and actuator features are designed for ease-of-use and extended product lifecycle. The Standard Heavy Duty Toggle Switch Series is our most robust series of toggle switches, available in several configurations of actuators and circuitries.
Current Rating (Continuous) in Amps:Â 10
Maximum DC Voltage (V):Â 36
Circuitry:Â SPST
Positions:Â On - None - Off
Input Terminals:Â 2 Screw
Housing:Â Plastic Bakelite with Plated Steel Cap
Actuator:Â Standard Toggle
Color & Finish:Â Nickel-Plated Brass - 11.938
Contacts:Â Silver
Mounting Hole Dimensions (in):Â 0.46875
Mounting Hole Dimensions (mm):Â 11.9
Parts Cross Reference
| Cole Hersee | 5520 |
| Crane Carrier CCI | 200041-079 |
| Tectran | 191022 |
| Tramec Sloan | 422675 |
| Country of Manufacture: | United States |
| Manufacturer: | Cole Hersee |
| Weight: | 0.100000 |
| Dimensions: | 2.88 x 1.63 x 1.31 IN |
| VMRS: | 034-004-081 |
