Freightliner A66-05475-002 LED Headlamp, M2, LH
Genuine Freightliner M2 LED Headlamp, LH - A66-05475-002Â
Left Hand Side
Length:Â 407.80 mm
Width:Â 273.50 mm
Height:Â 425.60 mm
Parts Cross Reference
| Freightliner | A66-05475-002, A6605475002, TL 27661C |
| Manufacturer: | Freightliner |
| Weight: | 9.460000 |
| Dimensions: | 23.500X15.000X18.000 IN |
| VMRS: | 034-001-151 |
Genuine Freightliner Truck Parts Warranty
With limited warranty protection on aftermarket truck parts sold through authorized Freightliner dealers, DTNA covers defective materials and/or workmanship for one year. For details on coverage, contact your local dealer.

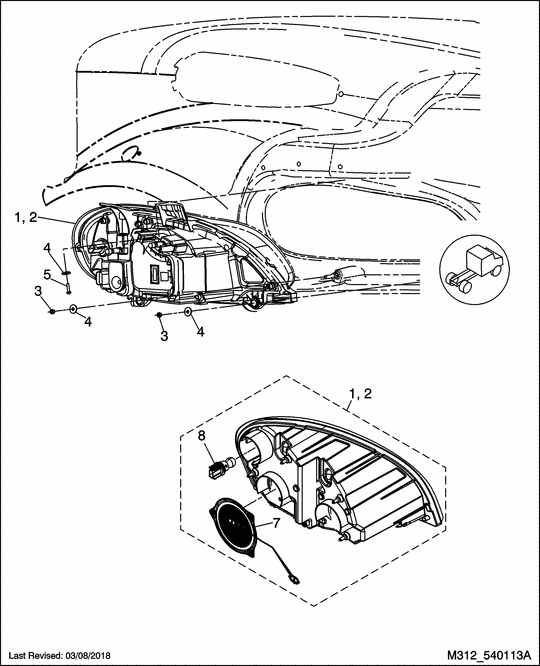

Service Note: Item #7 Is a Service Kit That Acts as the High and Low Beam LED Lamps
| Ref # | Description | Part Number |
| 1 | HEAD LAMP - LED-M2,LEFT HAND SIDE | A66-05475-002 |
| 2 | HEAD LAMP - LED-M2,RIGHT HAND SIDE | A66-05475-003 |
| 3 | LOCK NUT, HEX, M6, DIN 934, A2, STAINLESS STEEL, WITH PATCH | 23-12828-006 |
| 4 | WASHER - FLAT, STAINLESS STEEL, 1/4 INCH, 1.00 INCH OD | 23-10900-225 |

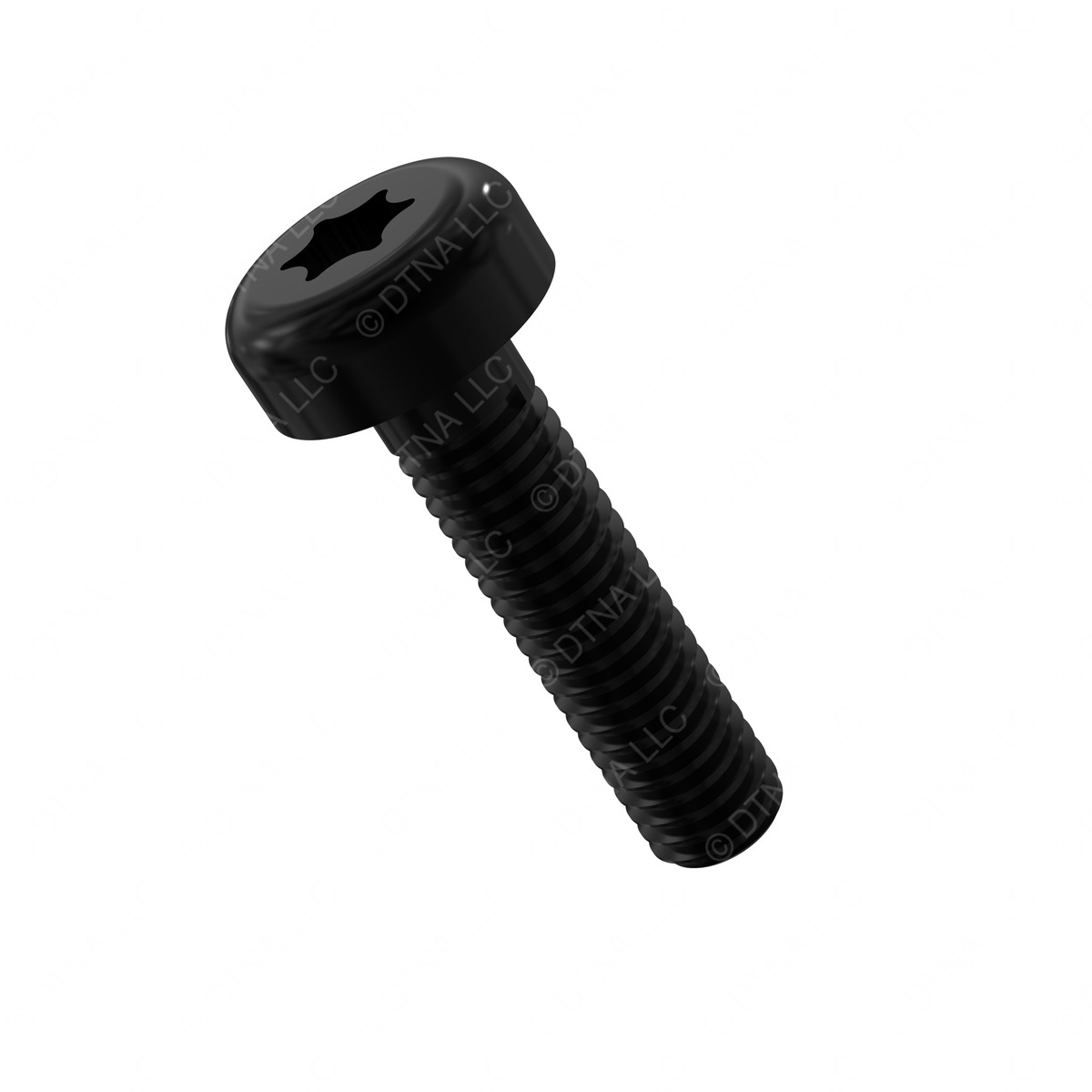

| 5 | SCREW - MACHINE, PAN HEAD INTERNAL THREAD, M6 x 1.00 X25 MM | 23-12781-725 |
| 7 | HI/LO LED HEADLAMP BOARD | TL 27662 |
| 8 | BULBS - ALL LAMPS - HALOGEN, REPLACEMENT, SOCKET, CASCADIA TS, 4157 | TL 27611 |

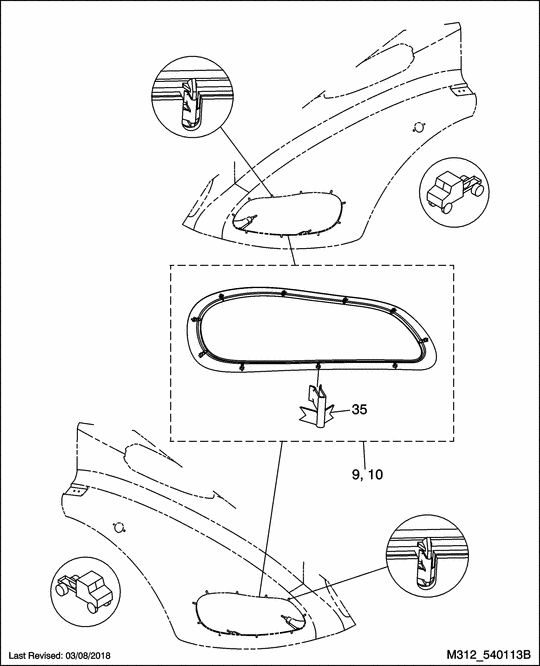

| 9 | BEZEL ASSEMBLY - HEADLAMP, CHROME, LEFT HAND | A17-14930-000 |
| 35 | CLIP - RETAINER, PANEL | 23-13048-000 |
