Freightliner A22-78606-005 Primary Mirror, P4, RH
Freightliner A22-78606-005 Primary Mirror, P4, RH
Color:Â Volcano Gray
Texture:Â T-1703
Mirror Type:Â Dual
Model:Â P4
Mounting Position:Â RH
Shell Color:Â Black
Mirror 1 Width:Â 6.07 in
Mirror 1 Height:Â 319.1 in
Mirror 2 Height:Â 124 in
Mirror 2 Width:Â 5.99 in
Total Width:Â 16.42 in
Total Height:Â 27.76 in
Parts Cross Reference
| Automann | 563.46104 |
| Freightliner | A22-78606-005, A2278606005, A22-78606-001, A22-76858-005, A22-76858-001, A22-75498-001, A22-73907-017, A22-73907-013, A22-73907-009, A22-73907-005, A22-73907-001 |
| S&S Newstar / World American | S-25423, S25423, WA18-8092 |
| Manufacturer: | Freightliner |
| Weight: | 18.200000 |
| Dimensions: | 35.000X19.500X11.000 IN |
| VMRS: | 002-010-018 |
Genuine Freightliner Truck Parts Warranty
With limited warranty protection on aftermarket truck parts sold through authorized Freightliner dealers, DTNA covers defective materials and/or workmanship for one year. For details on coverage, contact your local dealer.

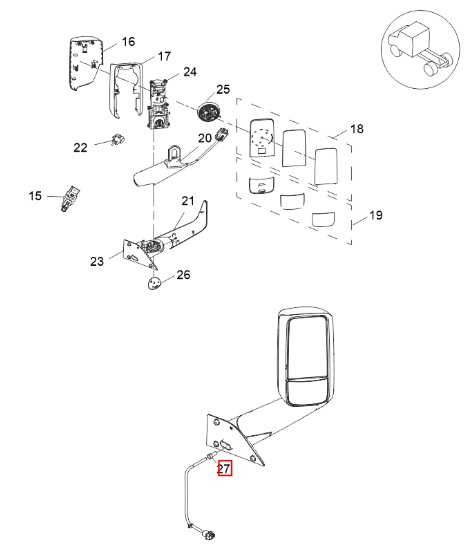

| Ref # | Description | Part Number |
| 16 | SHELL - BLACK, RIGHT HAND | 22-78606-501 |
| 17 | BEZEL - RIGHT HAND | 22-78606-505 |
| 18 | FLAT GLASS ASSEMBLY | 22-78606-506 |
| 19 | CONVEX GLASS ASSEMBLY | 22-78606-507 |
| 21 | COVER, ARM, RIGHT HAND | 22-78606-509 |
| 22 | STRAP - TIE, 1/4 INCH PUSH-ON, 50.8 MM | 23-12861-000 |
| 23 | DOOR GASKET - RIGHT HAND | 22-78606-511 |
| 25 | KIT - ACTUATOR | 22-78606-514 |
| 26 | CAP - CLUTCH, RIGHT HAND | 22-78606-513 |
| 27 | SEAL - CAVITY PLUG, S16, W | 23-13218-204 |
Cross Reference
