Freightliner A17-21186-000. Hood Air Intake Bezel, LH
Genuine Freightliner Truck Hood Air Intake Bezel, LH - A17-21186-000
Color: Â Volcano Gray
Material: Â Thermoplastic Olefin
Texture: Â Tenibac T-1703
Length: Â 696.40 mm
Width: Â 142.10 mm
Height: Â 49.30 mm
Wall Thickness: Â 3 mm
Mounting Position: Â LH
Parts Cross Reference
| Freightliner | A17-21186-000, A17-21068-000, A17-20841-000 |
| Manufacturer: | Freightliner |
| Weight: | 1.605000 |
| Dimensions: | 32.000X10.500X5.500 IN |
| VMRS: | 002-004-233 |
Genuine Freightliner Truck Parts Warranty
With limited warranty protection on aftermarket truck parts sold through authorized Freightliner dealers, DTNA covers defective materials and/or workmanship for one year. For details on coverage, contact your local dealer.

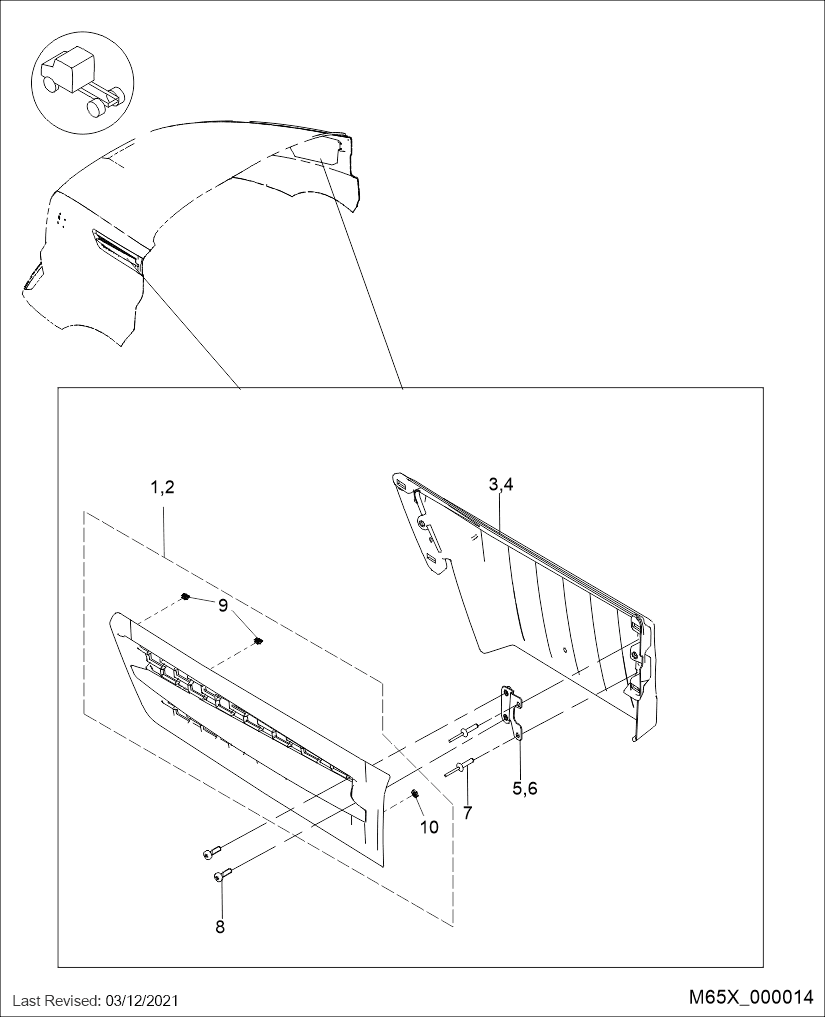

| Ref# | Description | Part Number |
| 1 | BEZEL - INTAKE, HOOD MOUNTED, LEFT HAND | A17-21186-000 |
| 2 | BEZEL - INTAKE, HOOD MOUNTED, RIGHT HAND | A17-21186-001 |
| 3 | BAFFLE - INTAKE, HOOD MOUNTED, LEFT HAND | 17-20843-000 |
| 4 | BAFFLE - INTAKE, HOOD MOUNTED, RIGHT HAND | 17-20843-001 |
| 5 | BRKT-RETENTION,BEZEL,LH | A17-21189-002 |
| 6 |
BRACKET - RETENTION, BEZEL, RIGHT HAND
|
A17-21189-003 |
| 7 | RIVET - BLIND, 3/16 X 0.100-0.287 | 23-11675-601 |
| 8 | SCREW - MACHINE, PAN HEAD, HEXALOBULAR DRIVE INTERNAL,M6 x 1 X20 MM | 23-14486-720 |
