Freightliner A05-32723-001 Coolant Overflow Tank Assembly
Freightliner A05-32723-001 Coolant Overflow Tank Assembly
Shape:Â Irregular
Mounting Hole Quantity:Â 4
Sight Glass:Â NO
Sensor Port:Â Â YES
Length:Â 309.10 mm
Width:Â 122 mm
Wall Thickness:Â 3.20 mm
Outlet Outer Diameter:Â 25.70 mm
Outlet Inner Diameter:Â 14 mm
Inlet Inner Diameter:Â 14 mm
Inlet Outer Diameter:Â 25.70 mm
Material:Â Polyethylene
Finish:Â Polished
Baffles Included:Â NO
Parts Cross Reference
| Freightliner | A05-32723-001, A0532723001, A05-32723-000 |
| Wheeler Fit | 1108-0016 |
| Manufacturer: | Freightliner |
| Weight: | 3.800000 |
| Dimensions: | 12.000X13.000X5.000 IN |
| VMRS: | 042-002-009 |
Genuine Freightliner Truck Parts Warranty
With limited warranty protection on aftermarket truck parts sold through authorized Freightliner dealers, DTNA covers defective materials and/or workmanship for one year. For details on coverage, contact your local dealer.

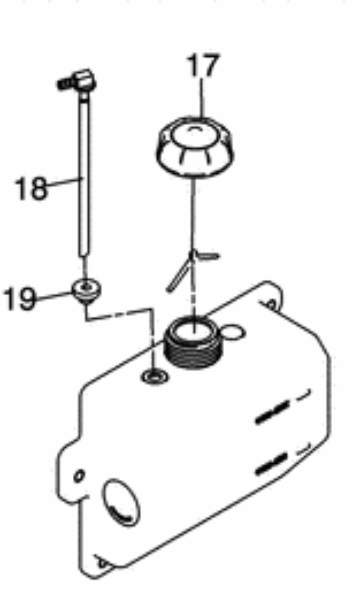

| Ref # | Description | Part Number |
| 17 |
CAP-VENTED PA,4" TETHER
|
FLM 080120AE |
| 18 |
ELBOW-5/16"TUBE,DAPCO(12018X)
|
05-32723-030 |
| 19 | GROMMET - 0.362 IN ID | 05-32723-010 |
