Freightliner 23-13149-029 Plug - 21 Cavity
Genuine Freightliner 23-13149-029 Plug 21Cavity, MCP2.8S, AUm BK, Seal
PLUG, 21CAV, MCP2.8S, AI, BK, SEAL
Supplier Part Number (Reference Only)  Connector   1-1355222-8
Â

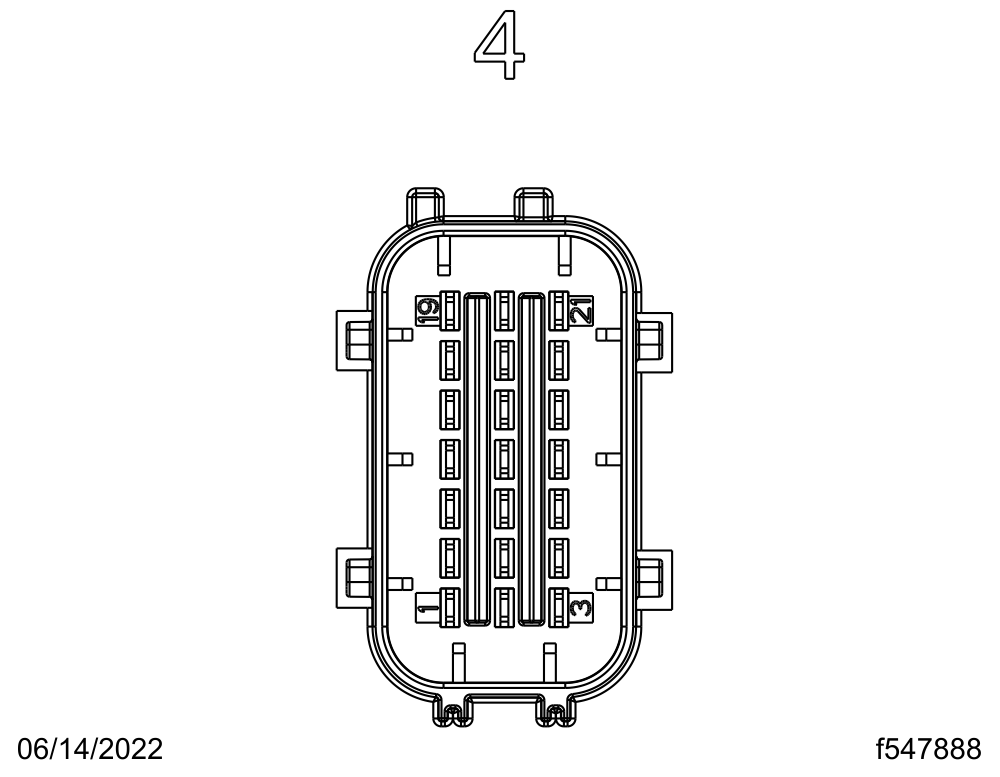

Table 7, Connector 4 – 23-13149-029
|
Â
|
|
|
Pin |
Function |
|
1 |
COOLANT PUMP #3 (EDRIVE) 24 VOLT, BAT |
|
2 |
EVDM GROUND #2, GND_E |
|
3 |
COOLANT PUMP #4 (EDRIVE) 24 VOLT, BAT |
|
4 |
COOLANT PUMP #5 (EDRIVE) 24 VOLT, BAT |
|
5 |
– |
|
6 |
COOLANT PUMP #1 (HVBAT) 24 VOLT, BAT |
|
7 |
CONTACTOR HVBAT #1 12 VOLT, KL30C (SOME EVDM VARIANTS MAY BE ON PIN 10 INSTEAD) |
|
8 |
– |
|
9 |
– |
|
10 |
CONTACTOR HVBAT #1 12 VOLT, KL30C (SOME EVDM VARIANTS MAY BE ON PIN 7 INSTEAD) |
|
11 |
– |
|
12 |
EBS 24 VOLT #1, BAT (SOME EVDM VARIANTS MAY BE ON PIN 20 INSTEAD) |
|
13 |
– |
|
14 |
– |
|
15 |
COOLANT PUMP #2 (HVBAT) 24 VOLT, BAT |
|
16 |
CONTACTOR HVBAT #3 12 VOLT, KL30C |
|
17 |
– |
|
18 |
– |
|
19 |
EBS 24 VOLT #2, BAT |
|
20 |
EBS 24 VOLT #1, BAT (SOME EVDM VARIANTS MAY BE ON PIN 12 INSTEAD) |
|
21 |
CONTACTOR HVBAT #2 12 VOLT, KL30C |
Color: Black
Material: Glass Fiber Reinforced With Polybutylene Terephthalate
Â
Length: 40 mm
Width: 69 mm
Parts Cross Reference
| Freighltiner | 23-13149-029, 2313149029, AI 1 1355222 2, 23-13149-014, AI 1 1355222 9, AI 1 1355222 1, AI 1 1534127 1, A 015 545 91 26 |
| Manufacturer: | Freightliner |
| Weight: | 0.110000 |
| Dimensions: | 2.750X1.750X1.500 IN |
| VMRS: | 034-004-107 |
