Name: Freightliner 17-15346-002 Bracket - Pivot Hood LH
Brand: Freightliner
SKU: 17-15346-002
Price: 222.49 USD

Genuine Freightliner Bracket - Pivot Hood LH - 17-15346-002

In stock

SKU: 17-15346-002

$292.49

$222.49

Genuine Freightliner Bracket - Pivot Hood LH - 17-15346-002

Adhesive Kit EXM 209801 must be used for proper installation. Install procedures are noted in the Cascadia Workshop Manual Section 88.00.

Material: Aluminum
Finish: E-Coated Prime

Mounting Position: LH

Parts Cross Reference

Automann	564.46462
Freightliner	17-15346-002, 17-15346-000, 1715346000
S&S Newstar / World American	S-25676, S25676, WA18-8086

Manufacturer:	Freightliner
Weight:	6.000000
Dimensions:	29.000X8.500X5.000 IN
VMRS:	002-004-090

Genuine Freightliner Truck Parts Warranty

With limited warranty protection on aftermarket truck parts sold through authorized Freightliner dealers, DTNA covers defective materials and/or workmanship for one year. For details on coverage, contact your local dealer.

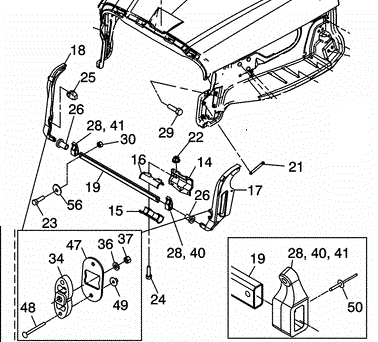

Ref #	Description	Part Number
15	CARRIER - PIVOT, HOOD, LOWER	17-20555-000
16	CARRIER - PIVOT, HOOD, LOWER	17-20555-001
17	BRACKET - PIVOT, HOOD, LEFT HAND	17-15346-002
18	BRACKET - PIVOT, HOOD, RIGHT HAND	17-15346-003
19	CROSSBAR-HOOD	A17-15556-003
21	NUTPLATE - M8X150, STEEL,2 HOLE	A17-19724-000
22	NUT - HEXAGONAL, CONICAL WASHER, M12 X 1.75	23-13092-012
23	SCREW - SHOULDER, HEX SOCKET HEAD, M10	23-13026-425
24	SCREW - CAP, HEXAGONAL, M12 X 100 MM LONG	23-12381-100
26	BEARING - FLANGED, SELF LUBRICATING	23-13459-000
28	BRACKET - MOUNTING, GRILLE, LOWER, INBOARD	A17-17208-001
29	SCREW, HEXAGONAL FLNG, M8X1.25X30	N910105 008016
30	NUT - HEX, FLANGE, LOCKING, M10-1.5, ZINC ALUMINUM	23-13892-010
34	BRACKET - MOUNTING, GRILLE, LOWER, OUTBOARD	A17-17256-000
47	BRACKET - HOOD, GRILLE MOUNT, OUTBOARD	17-18175-000
48	LOCKBOLT - BRAZIER HEAD, 3/16 X 0.56-1.25	23-11036-620
49	COLLAR - LOCKBOLT, 3/16	23-11037-601
50	RIVET - BLIND, LONG FLAG, 3/1	AV 1692 0631
