Delco Remy 8200434 39MT Starter Motor
Delco Remy 8200434 39MT Starter Motor
Reman Version Delco Remy 8300084
Part Number:Â 8200434
Status:Â Active
Model:Â 39MT
Type:Â New Starter
System Voltage:Â 12
Mounting Type:Â SAE 3
Pinion Teeth:Â 12
Pinion Pitch:Â MOD 3.00
Solenoid Position:Â 292
Rotation:Â CW
Polarity:Â Insulated
Over Crank Protection:Â Yes
Parts Cross Reference
| Alliance | ABP N15 39MT434 |
| Automann | 178.3912121 |
| Delco Remy | 8200434, 8200771, 8200618, 8200671, 8201022, 8200329, 8200298 |
| Denso | 428000-8690, NPD 428000 8690 |
| Leece Neville | M110604 |

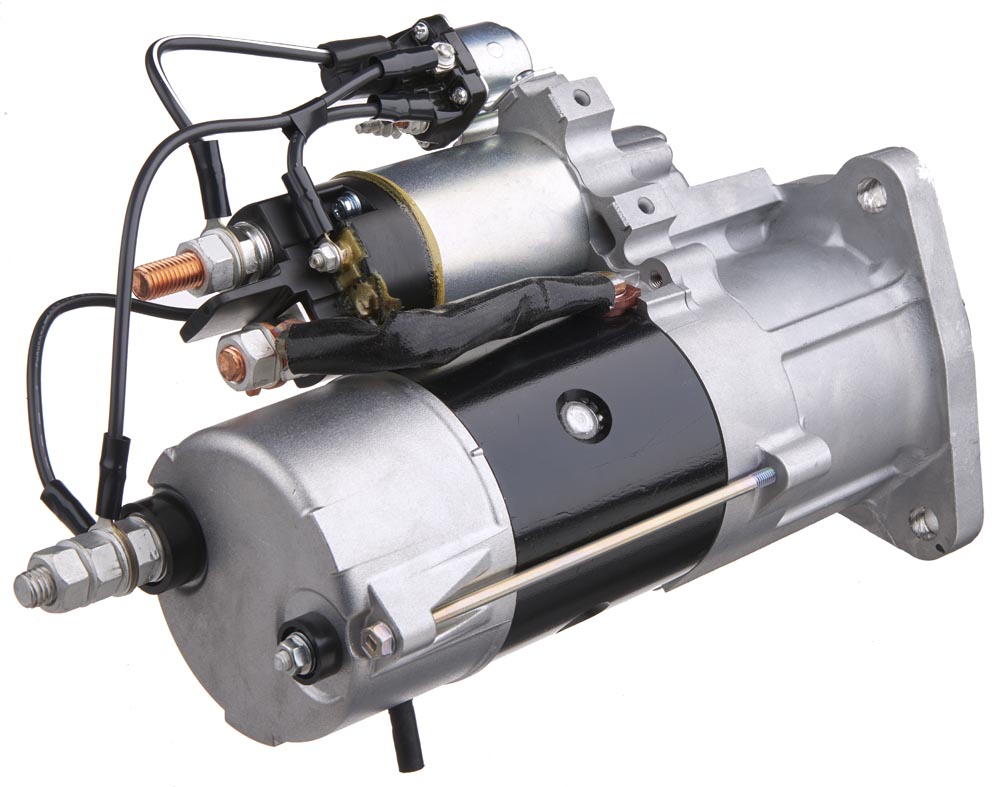

| Mitsubishi Electric | FL0189, M009T70379 |
| S&S Newstar / World American | S-25564, S25564, WA391212OCPNB |
| Manufacturer: | Delco Remy |
| Weight: | 36.000000 |
| Dimensions: | 19.000 x 12.000 x 8.000 IN |
| VMRS: | 032-002-001 |

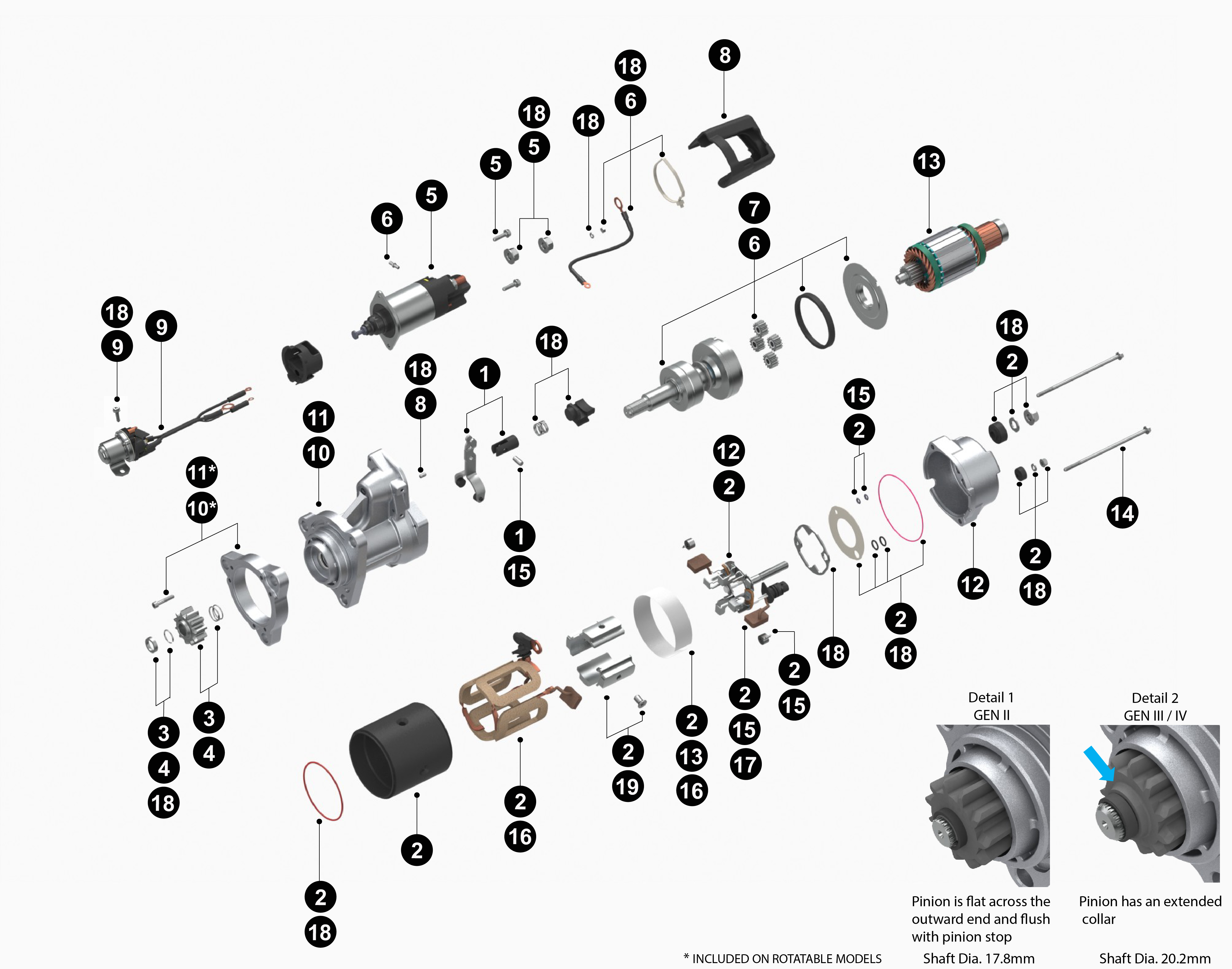

Numbers on the drawing indicate the service kit(s) the components are associated with.
| Ref # | Description | Part Number |
| 1 | Lever Kit | 10511402 |
| 2 | F&F/Brush Kit | 10539731 |
| 4 | Pinion Kit Gen III / IV See Detail 2 | 10526466 |
| 5 | Solenoid Kit | 10537417 |
| 7 | Drive Shaft w/o Pinion Gen III / IV See Detail 2 | 10526468 |
| 9 | IMS Kit | 10538109 |
| 11 | DE Housing Gen III / IV See Detail 2 | 10526467 |
| 12 | CE Housing | 10533328 |
| 13 | Armature Kit | 10516266 |
| 14 | Thru Bolt | 10515835 |
| 15 | Brush Holder Kit | 10539737 |
| 17 | Brushes Kit | 10529638 |
| 18 | Miscellaneous Hardware Kit | 10526610 |
| 19 | Pole Shoe Kit | 10527545 |
Cross Reference
Special Price
$455.11
Regular Price
$536.38
Out of stock
